Horizontal natural gas traps Model: HWTSK series

Nominal pressure (PN): 25~40

Working pressure difference (Mpa): 0.01~2.0, 0.01~3.6

Displacement (m3/h): 8~20

Connection: Flange (GB, ANSI, JIS)

Nominal size (DN): 50~65

Operating temperature: normal temperature

Download Horizontal natural gas traps Model: HWTSK series
Features

1. Fully automatic continuous operation, discharge when there is water, automatic shutdown when there is no water, and the discharge rate of sedimentary water (liquid) is 100%.

2. Double guidance, high action reliability, no gas leakage during operation.

3. The internal parts are all made of stainless steel, which has a long service life.

4. Good cleaning performance, wear resistance and corrosion resistance.

5. Easy installation, stable operation and convenient sewage discharge.

Application: It is suitable for the automatic discharge of sedimentary water (liquid) in the gas-water separator or natural gas storage tank of natural gas mines.

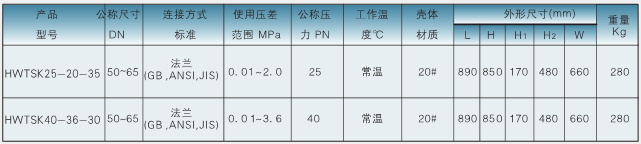

Selection cheat sheet
