Vertical natural gas traps Model: HLTS series

Nominal pressure(PN):16~40

Working pressure difference (Mpa): 0.01~0.8, etc

Displacement (m3/h): 8~20

Connection: flange, thread

Nominal size (DN): 25~80 etc

Operating temperature: normal temperature

Download Vertical natural gas traps Model: HLTS series
Features

1. Fully automatic continuous operation, discharge when there is water, automatic shutdown when there is no water, and the discharge rate of sedimentary water (liquid) is 100%.

2. Double guidance, high action reliability, no gas leakage during operation.

3. The internal parts are all made of stainless steel, which has a long service life.

4. Good cleaning performance, wear resistance and corrosion resistance.

5. Easy installation, stable operation and convenient sewage discharge.

Application: It is suitable for the working condition that can automatically separate the gas-liquid two-phase medium with a specific gravity difference greater than 0.3, and is conducive to the recycling of the liquid-phase medium.

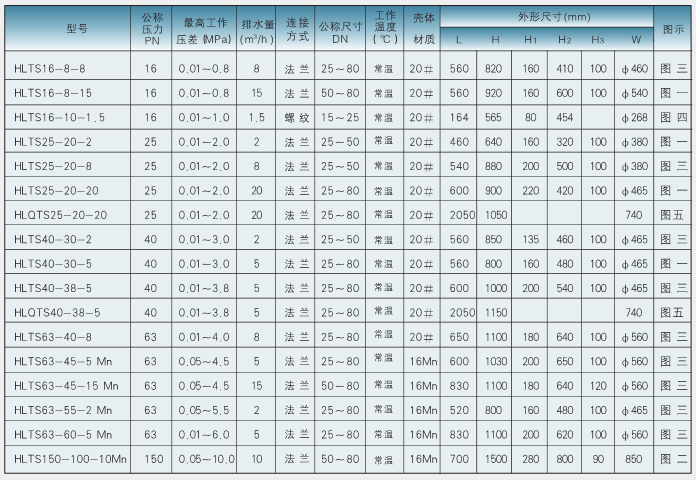

Selection cheat sheet

Information Request
* Please fill in your email address truthfully, and the product information will be sent to your mailbox
